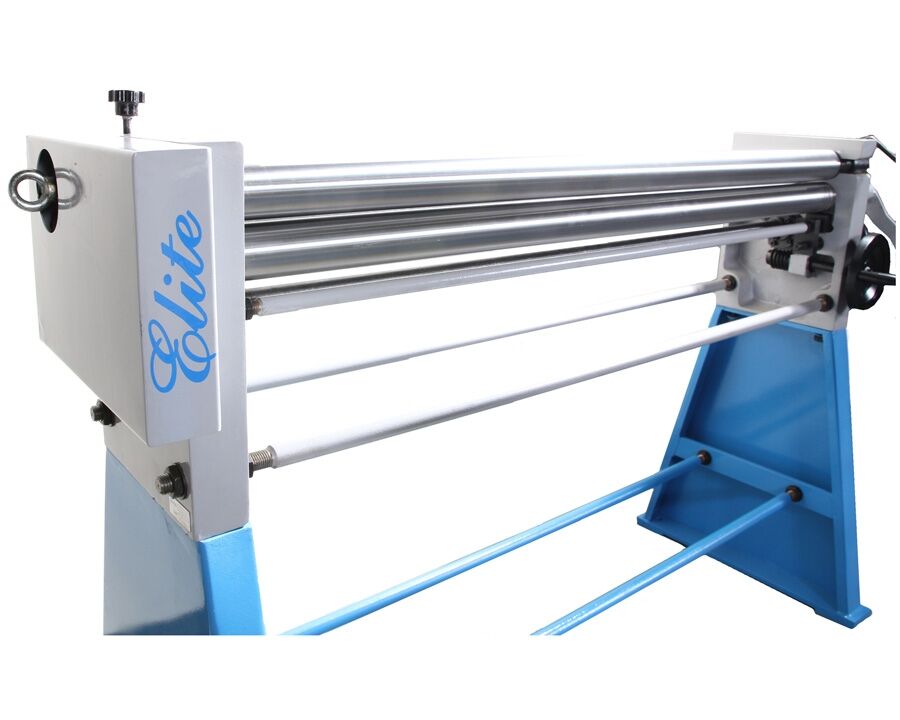

Woodward Fab 24″ Elite Slip Roll
With the Elite roll you can select from 2 different speeds. We have added another spindle to the gear box so by changing the crank handle position, you can either roll thin material or select gear ratio for rolling thicker material with ease.
***FREE SHIPPING***
24″ Elite Slip Roller
Uses a Single Front Mounted Hand Wheel for Adjusting the Rear Roll for Varying Radii
Also Uses a Single Hand Wheel to Adjust the Bottom Wheel for Material Thickness
With a Single Handle, the Upper Roll Will Lift to Remove Work Pieces
With a Simple Adjustment, you can also Roll Tapers up 15 Degrees
Longitudinal Groove the Length of the Top Front Roll for More Aggressive Forming
Fully Enclosed Gear Box, Cast Iron End Plates
Wire Grooves for Rolling Wire 1/16”, 1/8”, 3/16”, 1/4”
Floor Stand Included
Weight 425 Lbs (Shipped Via Freight Truck) - Transit Time: 4-5 Business Days
SKU #WFSRELITE24
With the Elite roll you can select from 2 different speeds. We have added another spindle to the gear box so by changing the crank handle position, you can either roll thin material or select gear ratio for rolling thicker material with ease.
***FREE SHIPPING***
24″ Elite Slip Roller
Uses a Single Front Mounted Hand Wheel for Adjusting the Rear Roll for Varying Radii
Also Uses a Single Hand Wheel to Adjust the Bottom Wheel for Material Thickness
With a Single Handle, the Upper Roll Will Lift to Remove Work Pieces
With a Simple Adjustment, you can also Roll Tapers up 15 Degrees
Longitudinal Groove the Length of the Top Front Roll for More Aggressive Forming
Fully Enclosed Gear Box, Cast Iron End Plates
Wire Grooves for Rolling Wire 1/16”, 1/8”, 3/16”, 1/4”
Floor Stand Included
Weight 425 Lbs (Shipped Via Freight Truck) - Transit Time: 4-5 Business Days
SKU #WFSRELITE24
With the Elite roll you can select from 2 different speeds. We have added another spindle to the gear box so by changing the crank handle position, you can either roll thin material or select gear ratio for rolling thicker material with ease.
***FREE SHIPPING***
24″ Elite Slip Roller
Uses a Single Front Mounted Hand Wheel for Adjusting the Rear Roll for Varying Radii
Also Uses a Single Hand Wheel to Adjust the Bottom Wheel for Material Thickness
With a Single Handle, the Upper Roll Will Lift to Remove Work Pieces
With a Simple Adjustment, you can also Roll Tapers up 15 Degrees
Longitudinal Groove the Length of the Top Front Roll for More Aggressive Forming
Fully Enclosed Gear Box, Cast Iron End Plates
Wire Grooves for Rolling Wire 1/16”, 1/8”, 3/16”, 1/4”
Floor Stand Included
Weight 425 Lbs (Shipped Via Freight Truck) - Transit Time: 4-5 Business Days
SKU #WFSRELITE24
16 gauge capacity
2 speed gear box
Robust cast iron frame
Quick release top roll
Floor stand included
